Rod mill
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Resalte las ventajas: Ahorre energa; Ahorre ms del 40% de energa sobre equipos viejos y reduzca los costos; Descarga uniforme, alto rendimiento; Mediante el uso de tecnologa de molino de varillas avanzada y controlable, combinada con el mat
- +8613607653853
- 7*24 hours service hotline

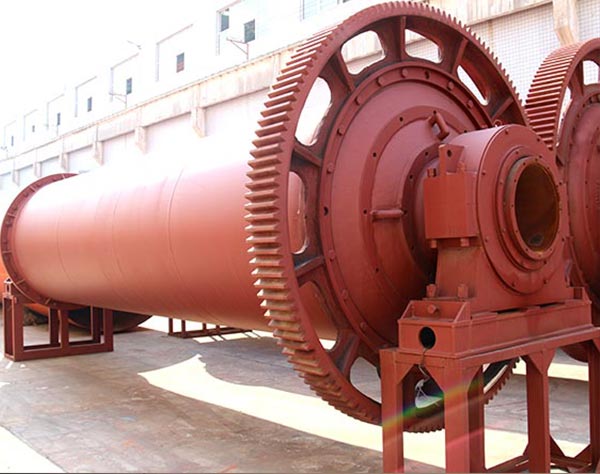

Rod Mill has dry and wet forms to choose, usesr can choose according to their own actual situation. The Nile uses advanced controllable material and materials technology, the actual abrasive material is matched with the suitable grinding body, the traditional face contact changes to the line contact, the material granularity is more even, the output is higher;

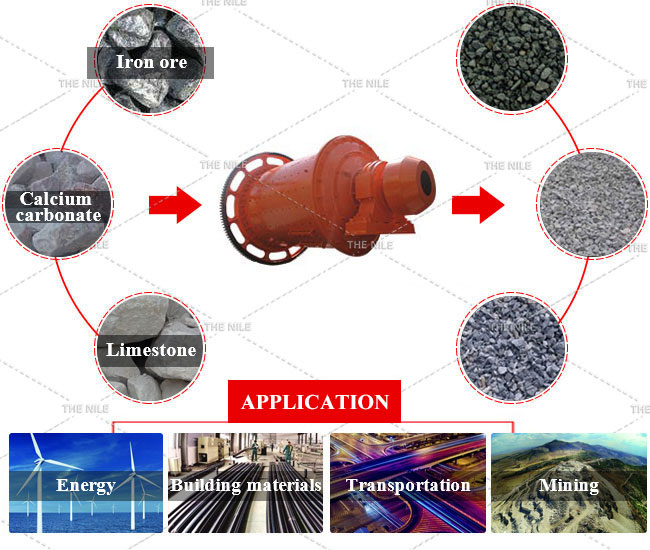

It is Widely used in refractory materials, chemical industry, metallurgy, glass and other industries on the grinding finished product uniformity requirements of high grinding operations, in recent years also used in building sand industry, such as sand production
The characteristic of the rod Mill is that in the grinding process, the grinding medium is in line contact with the ore, so it has a certain selective grinding effect. Product particle size is more uniform, less crushing ore grains. When used in coarse grinding, the processing capacity of the rod mill is larger than that of the ball mill.
Technical Data of the Rod mill
|
Type
|
Cylinder specification (mm) |
Cylinder (r/min) |
Weight (t) |
Material-in size (mm) |
Material-out size (mm) |
Capacity (t/h) |
Power (kw) |
Overall dimension (L*W*H) (mm) |
Weight (kg) |
|
| Diameter | Length | |||||||||
| MB0918 | 900 | 1800 | 29.0-31.3 | 2.3 | <25 | 0.16-5 | 1.6-6 | 22 | 5900*2365*2015 | 6200 |
| MB0924 | 900 | 2400 | 29.0-35.4 | 3.1 | <25 | 0.16-5 | 2.9-10 | 30 | 5250*2480*2127 | 6600 |
| MB1224 | 1200 | 2400 | 27.0-34.0 | 6.5 | <25 | 0.16-5 | 5.0-13 | 55 | 5829*2867*2540 | 13500 |
| MB1530 | 1500 | 3000 | 26.5-29.5 | 11.5 | <25 | 0.16-5 | 6.0-25 | 95 | 7635*3329*2749 | 18170 |
| MB1830 | 1800 | 3000 | 21.6-22.8 | 17.5 | <25 | 0.16-5 | 4.8-28 | 155 | 8007*3873*3023 | 35000 |
| MB2130 | 2100 | 3000 | 19.0-21.0 | 23.5 | <25 | 0.16-5 | 12.6-30 | 155 | 9000*2800*3800 | 43000 |
| MB2136 | 2100 | 3600 | 19.0-21.0 | 23.2 | <25 | 0.16-5 | 15.1-45 | 210 | 9600*2800*3800 | 58000 |
| MB2736 | 2700 | 3600 | 17.2-18.5 | 47.0 | <25 | 0.16-5 | 25.0-75 | 400 | 10870*6100*4950 | 71500 |
