Mobile cone crusher station
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
The Nile Mobile Cone Crusher Station is mainly composed of high efficiency cone crusher, high performance vibrating screen, belt conveyor , motor and control box. The machine is mainly used in the production of fine sand, according to diffe
- +8613607653853
- 7*24 hours service hotline

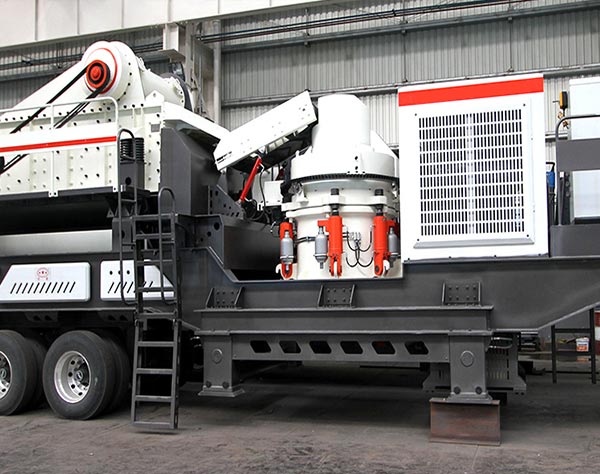

The Nile Mobile Cone Crusher Station is mainly composed of high efficiency cone crusher, high performance vibrating screen, belt conveyor , motor and control box.

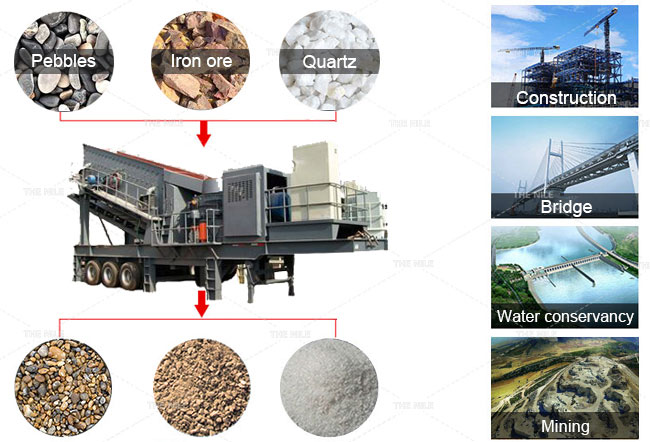

The machine is mainly used in the production of fine sand, according to different material and final product uses, produce higher hardness and finer granularity of sand products.
The cone crusher can be adjusted to different crusher cavity type according to the actual need, which expands the application field of mobile cone crusher tation.
The machine is mainly used in the production of fine sand, according to different material and final product uses, produce higher hardness and finer granularity of sand products.
The cone crusher can be adjusted to different crusher cavity type according to the actual need, which expands the application field of mobile cone crusher tation.
Technical Data of the Mobile cone crusher station
| PP cone crushing plant | PP120SMHS | PP180SMHS | PP180SMH | PP250SMHS | PP250SMH | |
| Shipping size |
Length (mm) |
11200 | 11800 | 10000 | 12300 | 10816 |
|
Width (mm) |
2743 | 2743 | 2480 | 2900 | 2743 | |
|
Height (mm) |
4200 | 4200 | 4160 | 4200 | 4160 | |
|
Weight (kg) |
28400 | 30500 | 22400 | 48700 | 35700 | |
|
Axle load (kg) |
15500 | 16300 | 14300 | 31100 | 22900 | |
|
Tractor weight (kg) |
12900 | 14200 | 8100 | 17600 | 12800 | |
| Cone crusher | Type | SMH120 | SMH180 | SMH180 | SMH250 | SMH250 |
|
Max feeding size (mm) |
160 | 180 | 180 | 240 | 240 | |
|
Adjustable discharge size (mm) |
22-32 | 22-32 | 22-32 | 26-51 | 26-51 | |
| Type of viberating screen | 3YK1545 4YK1548 4YK1848 | |||||
| Type of belt conveyor | B800*8 B1000*8 | |||||
