Iron remover
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Introduccin del producto serie YDRC de Imanes permanentes de auto descarga removedor es un alto rendimiento ncleo magntico permanente, abandon cinturn de hierro, motor de engranajes, un bastidor, tambor, y otros componentes, lo utilizando v
- +8613607653853
- 7*24 hours service hotline
Product introduction

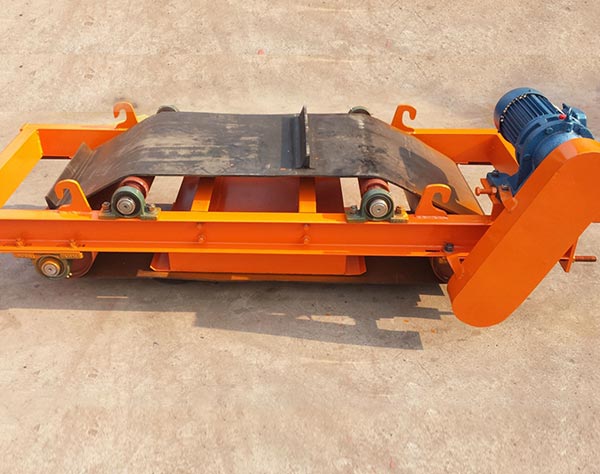

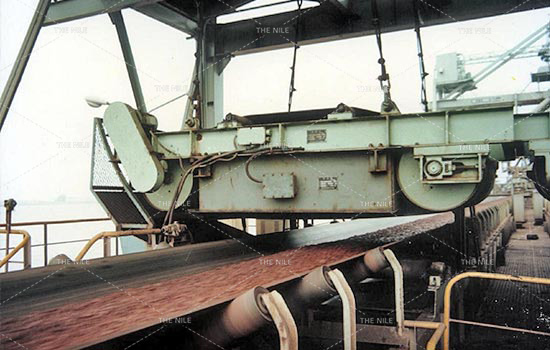

RCYD series permanent magnet self-twisting iron remover is composed of high-performance permanent magnetic core, abandoned iron belt, deceleration motor, frame, roller , etc It is used with various conveyors. Used for automatic cleaning of ferromagnetic materials from non-magnetic materials. Pendant self-discharging permanent magnetic iron detector series RCYD is an automatic device for removing iron. When it works, the ferromagnetic material, which will be continuously adsorbed on the iron removal device, will automatically be ejected through the rotation of the leather iron release belt to achieve the purpose of automatic iron discharge. The model has a wide scope of application, energy saving, easy maintenance, extremely low failure rate and stable and reliable operation under extremely harsh conditions. This model is used by many factories.
RCYD series permanent magnet self-twisting iron remover is composed of high-performance permanent magnetic core, abandoned iron belt, deceleration motor, frame, roller , etc It is used with various conveyors. Used for automatic cleaning of ferromagnetic materials from non-magnetic materials. Pendant self-discharging permanent magnetic iron detector series RCYD is an automatic device for removing iron. When it works, the ferromagnetic material, which will be continuously adsorbed on the iron removal device, will automatically be ejected through the rotation of the leather iron release belt to achieve the purpose of automatic iron discharge. The model has a wide scope of application, energy saving, easy maintenance, extremely low failure rate and stable and reliable operation under extremely harsh conditions. This model is used by many factories.
Technical Data of the Iron remover
| Model |
Belt width (мм) |
Rated height (h≤mm) |
Material thickness (≤mm) |
The strength of the magnetic field ≥mT |
Power (≤kw) |
Adaptive belt speed ≤m / s |
Working system |
Вес (т)((9 |
| RCYD(C)-5 | 500 | 150 | 100 | 65 | 1.5 | 4.5 | continuous | 750 |
| RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 1.5 | 1200 | ||
| RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 1400 | ||
| RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3.0 | 2120 | ||
| RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4.0 | 3350 | ||
| RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4.0 | 4450 | ||
| RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 6200 |
