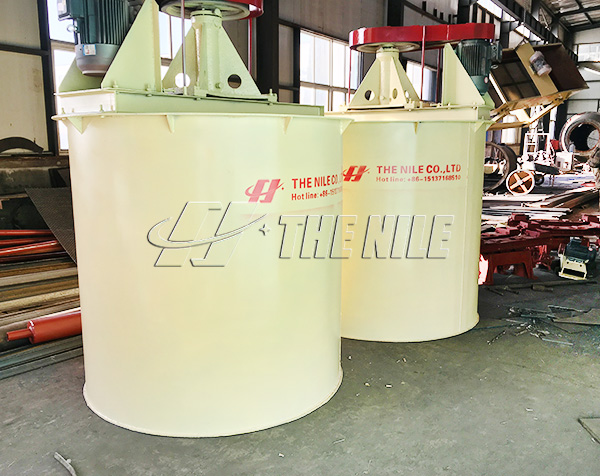

Double impellers leaching stirred tank
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Product description Double impeller leaching and stirring tank is a cyanide leaching and stirring equipment designed with reference to international advanced technology. This equipment is mainly suitable for gold leaching, adsorption and ot
- +8613607653853
- 7*24 hours service hotline
Product description
Double impeller leaching and stirring tank is a cyanide leaching and stirring equipment designed with reference to international advanced technology. This equipment is mainly suitable for gold leaching, adsorption and other mixing operations with small specific gravity, low viscosity, slow sedimentation speed, ore particle size of -200 mesh and more than 90%, and slurry concentration of less than 45%. It has the characteristics of double-layer impeller, uniform stirring, low energy consumption, long service life, and even aeration. It is deeply favored by customers who has gold processing mines.
Working principle
When the double impeller leaching mixing tank is working, the pulp will flow from the top to the bottom under the drag and stirring action of the double impeller, diffuse through the surrounding damping plate, and feed air at the lower end of the shaft to mix with the pulp Circulate upward to form a uniform suspension mixture.
Technical Data of the Double impellers leaching stirred tank
| Double impellers leaching stirred tank | |||||||||||
| Model | Cell(diameter×Height)（mm） | Effective Volume(m³) | Impeller | Diameter（mm） | Cyclical Planetary Reducer | Weight(kg) | |||||
| Rotation Speed(rpm) | Diameter(mm) | Feeding Tube | Output Tube | Model | Ratio | Motor Power（kw） | Cell Weight | Total Weight | |||
SJ2.0×2.5 | 2000×2500 | 6 | 52 | 909 | 2-φ133 | 2-φ133 | XLD2.2-4-29 | 29 | 2.2 | 1609 | 2144 |
SJ2.5×3.15 | 2500×3150 | 13 | 52 | 935 | 2-φ125 | 2-φ125 | XLD2.2-4-29 | 29 | 2.2 | 2398 | 3095 |
SJ3×3.15 | 3000×3150 | 18.9 | 43 | 1130 | 2-φ150 | 2-φ150 | XLD4-5-35 | 35 | 4 | 2480 | 4160 |
SJ3.55×4.0 | 3550×4000 | 35 | 43 | 1310 | 2-φ150 | 2-φ150 | XLD4-5-35 | 35 | 4 | 4260 | 5025 |
SJ4.0×4.5 | 4000×4500 | 48 | 35 | 1750 | 2-φ150 | 2-φ150 | XLD7.5-7-43 | 43 | 7.5 | 6397 | 7569 |
SJ4.5×5.0 | 4500×5000 | 71.6 | 35 | 1750 | 2-φ159×6 | 2-φ159×6 | XLD7.5-7-43 | 43 | 7.5 | 8614 | 10864 |
SJ5.0×5.6 | 5000×5600 | 98 | 31 | 2046 | 2-φ159×8 | 2-φ159×8 | XLD11-8-47 | 47 | 11 | 8740 | 14291 |
SJ5.5×6.0 | 5500×56000 | 112 | 31 | 2100 | 2-φ159×8 | 2-φ159×8 | XLD11-8-47 | 47 | 11 | 12467 | 18745 |
SJ6.5×7.0 | 6500×7000 | 195 | 21 | 2400 | 2-φ159×8 | 2-φ159×8 | GRF147-Y22-4P-70.87 | 47 | 22 | 17890 | 25978 |
SJ7.0×7.5 | 7000×7500 | 245.4 | 21 | 2400 | 2-φ159×8 | 2-φ159×8 | XLD22-10-47 | 47 | 22 | 20505 | 29030 |
SJ7.5×8.0 | 7500×8000 | 268.6 | 23 | 2900 | 2-φ168×8 | 2-φ168×8 | XLD22-10-47 | 47 | 22 | 22552 | 32796 |
SJ8.0×8.5 | 8000×8500 | 319 | 18.5 | 3300 | 2-φ168×8 | 2-φ168×8 | TPS315-3F | 59 | 22 | 30559.5 | 42467.3 |
SJ8.5×9.0 | 8500×9000 | 395 | 18.5 | 3300 | 2-φ219×8 | 2-φ219×8 | TPS315-3F | 59 | 22 | 34130 | 46623 |
