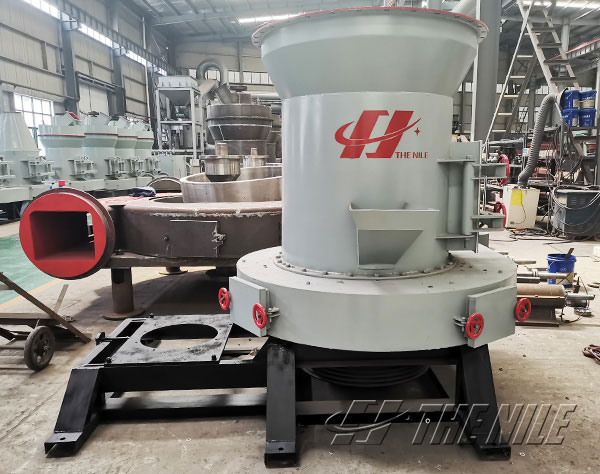

Raymond mill
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Caractersticas 1. La mquina completa para la estructura espacial, tamao reducido, el sistema es fuerte, desde el transportador a molinos de harina o mecanizado aproximada de las materias primas en el embalaje final, puede poseer un sistema
- +8613607653853
- 7*24 hours service hotline

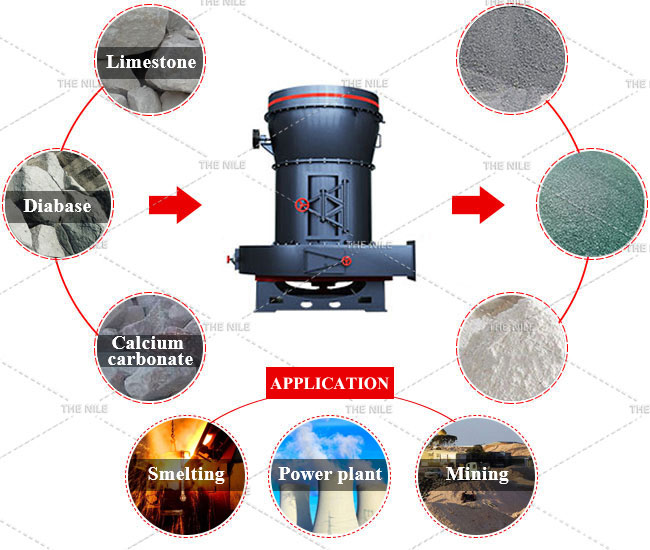

Raymond mill is commonly milling equipment mainly used in chemicals, building materials and other hundreds of kinds of materials of high fine milling processing, such as barite, calcite, potash feldspar, limestone, talc, white stone, gypsum and other inflammable and explosive materials hardness not greater than 9.3 moh's hardness, humidity in less than 6%. Discharge size can be adjustable from 40 to 400 meshes.
Raymond mill for different materials, different fineness, different output requirements, divided into high-pressure micro-grinding mill,high pressure suspension roller mill, etc. more than 10 models.
Raymond mill for different materials, different fineness, different output requirements, divided into high-pressure micro-grinding mill,high pressure suspension roller mill, etc. more than 10 models.
Working principle

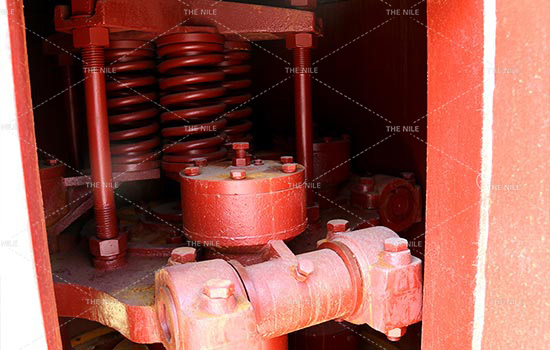

The work principle of Raymond Mill is that the rollers are rolled tightly in the grinding ring under the centrifugal force, material lifted by the shovel is ground into powder between the ring and roller, and then the fan blown up the powder through the analysis machine to the cyclone collector, powder achieve fineness requirements through the analysis machine, can not reach the requirements return to grinding cavity and continue grinding. The exhaust air is separated by industrial filter cloth to form a powder.
The work principle of Raymond Mill is that the rollers are rolled tightly in the grinding ring under the centrifugal force, material lifted by the shovel is ground into powder between the ring and roller, and then the fan blown up the powder through the analysis machine to the cyclone collector, powder achieve fineness requirements through the analysis machine, can not reach the requirements return to grinding cavity and continue grinding. The exhaust air is separated by industrial filter cloth to form a powder.
Technical Data of the Raymond mill
model | Roller number | Roller size | Inner diameter&height of ring | Max feed size | capacity | power | weight | Overrall dimensions |
3R1510 | 3 | 150*100 | 570*100 | 15 | 0.3-1.2 | 7.5 | 2 | 3200*2100*3800 |
3R2115 | 3 | 210*150 | 630*150 | 15 | 0.4-1.6 | 15 | 3.6 | 4500*2800*5800 |
3R2615 | 3 | 260*150 | 780*150 | 20 | 0.8-2.5 | 18.5 | 4.2 | 5650*3305*3950 |
3R2715 | 3 | 270*150 | 830*150 | 20 | 0.9-2.8 | 22 | 4.8 | 5600*3400*5900 |
3R3015 | 3 | 300*150 | 875*150 | 20 | 1.2-3.5 | 30 | 5.3 | 5700*3500*5900 |
3R3016 | 4 | 300*160 | 890*160 | 20 | 1.2-4 | 30 | 8.5 | 6500*4100*5200 |
4R3216 | 4 | 320*160 | 970*160 | 25 | 1.8-4.5 | 37 | 15 | 9900*5800*10580 |
5R4121 | 5 | 410*210 | 1280*210 | 30 | 3-9.5 | 75 | 24 | 7900*8000*9700 |
