Pulp thickener
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Introduction Pulp thickener is suitable for occasions with large processing capacity and low product concentration. It is mainly used for the concentration of concentrates and dewatering of tailings in ore dressing plants. Working principle
- +8613607653853
- 7*24 hours service hotline
Introduction
Pulp thickener is suitable for occasions with large processing capacity and low product concentration. It is mainly used for the concentration of concentrates and dewatering of tailings in ore dressing plants.
Working principle

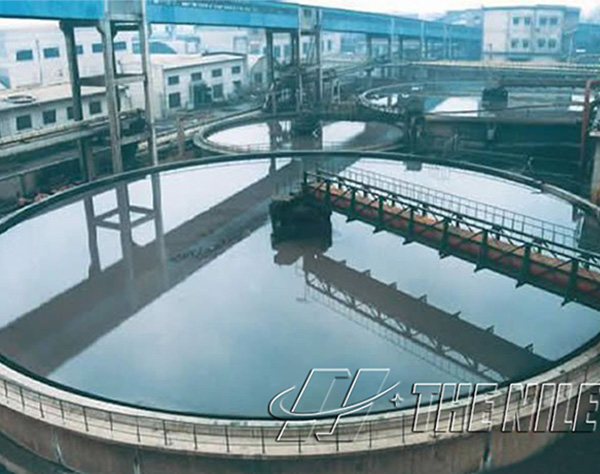

The high-efficiency pulp thickener is mainly composed of a circular thickening tank and a rake mud scraper. The solid particles suspended in the slurry in the thickening tank settle under the action of gravity, and the upper part becomes clarified water, so that the solid and liquid can be separated and deposited on The slime at the bottom of the concentration tank is continuously scraped and collected by the rake scraper to the central ore outlet at the bottom of the tank, and the clarified water overflows from the upper edge of the concentration tank.
Technical Data of the Pulp thickener
Main Technical Parameters
| Pulp thickener | ||||||
| Model | Transmission form | Concentration tank | Capacity(t/d) | Motor | Weight(kg) | |
| Diameter(m) | Depth(m) | Power(kw) | ||||
| NZS-1 | Centre drive | 1.8 | 1.8 | 5.6 | 1.1 | 1300 |
| NZS-3 | Centre drive | 3.6 | 1.8 | 22.4 | 1.1 | 2975 |
| NZS-6 | Centre drive | 6 | 3 | 62 | 3 | 8700 |
| NZS-9 | Centre drive | 9 | 3 | 140 | 3 | 16682 |
| NZS-12 | Centre drive | 12 | 3.5 | 250 | 3 | 33131 |
| NG-15 | Rollers | 15 | 3.5 | 390 | 5.5 | 9120 |
| NG-18 | Rollers | 18 | 3.5 | 560 | 5.5 | 10000 |
| NG-24 | Rollers | 24 | 3.7 | 1000 | 7.5 | 24000 |
| NG-30 | Rollers | 30 | 3.6 | 1570 | 7.5 | 26420 |
| NT-15 | Rack gear | 15 | 3.5 | 390 | 5.5 | 1100 |
| NT-18 | Rack gear | 18 | 3.5 | 560 | 5.5 | 12120 |
| NT-24 | Rack gear | 24 | 3.7 | 1000 | 7.5 | 28270 |
| NT-30 | Rack gear | 30 | 3.6 | 1570 | 7.5 | 30888 |
| NT-45 | Rack gear | 45 | 5.1 | 2400 | 11 | 58640 |
| NT-50 | Rack gear | 50 | 4.5 | 3000 | 11 | 65920 |
| NT-53 | Rack gear | 53 | 5.1 | 3400 | 11 |
69410 |
