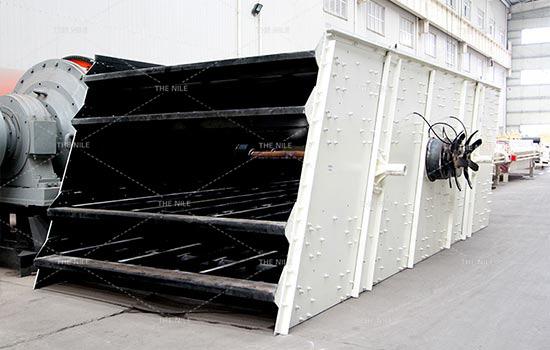

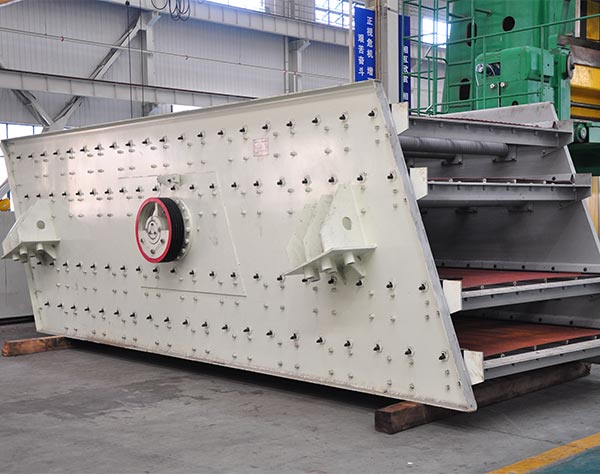

Circular vibrating screen
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Product Introduction Circular vibrating screen is a kind of multi layer, high-efficient new vibrating screen.It has the advantages of stable and reliable, low consumption, low noise, long life, stable mode and high screening efficiency. It
- +8613607653853
- 7*24 hours service hotline
Product Introduction
Circular vibrating screen is a kind of multi layer, high-efficient new vibrating screen. It has the advantages of stable and reliable, low consumption, low noise, long life, stable mode and high screening efficiency. It is a new type of screening equipment with high efficiency. Widely used in mining, coal, smelting, building materials, refractories, light industry, chemical and other industries of product classification.
Circular vibrating screen is a kind of multi layer, high-efficient new vibrating screen. It has the advantages of stable and reliable, low consumption, low noise, long life, stable mode and high screening efficiency. It is a new type of screening equipment with high efficiency. Widely used in mining, coal, smelting, building materials, refractories, light industry, chemical and other industries of product classification.
Working Principle

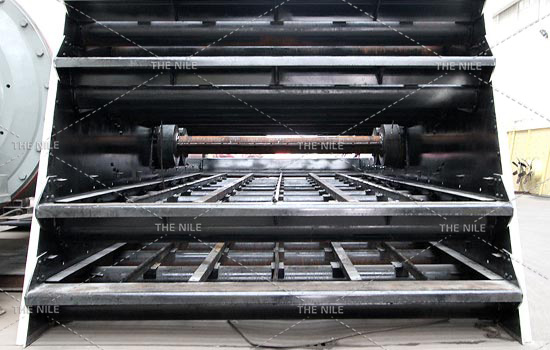

The round vibrating screen machine produced by the Nile mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box, and the motor rotates through the triangle belt to produce the centrifugal inertial force and force the vibration of the screen box. The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter with high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.
The round vibrating screen machine produced by the Nile mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box, and the motor rotates through the triangle belt to produce the centrifugal inertial force and force the vibration of the screen box. The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter with high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.
Technical Data of the Circular vibrating screen
Model | Layers | Screen Mesh (mm) | Max Feed Size (mm) | Capacity (m³/h) | Double Amplitude | Screen Specification (mm) | Weight (kg) | Dimension (mm) | |||
2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 2930×1860×870 |
3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3070×1860×1210 |
2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3430×1860×870 |
3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 3570×1860×1210 |
2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4050×1860×870 |
3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860×1210 |
2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210×1230 |
3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210×1610 |
2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 8 | 15 | 20 | 1500×4500 | 6330 | 5120×2210×1230 |
3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 8 | 15 | 20 | 1500×4500 | 6800 | 5360×2210×1610 |
4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 8 | 18.5 | 20 | 1500×4500 | 7800 | 5930×2210×2060 |
2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 8 | 15 | 20 | 1500×4800 | 6980 | 5420×2210×1230 |
3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 11 | 15 | 20 | 1500×4800 | 7700 | 5660×2210×1610 |
4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 8 | 18.5 | 20 | 1500×4800 | 8700 | 6230×2210×2060 |
2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 8 | 15 | 20 | 1800×4800 | 9080 | 5420×2550×1420 |
3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 8 | 18.5 | 20 | 1800×4800 | 9600 | 5660×2550×1780 |
4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 8 | 22 | 20 | 1800×4800 | 11100 | 6290×2550×2160 |
2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 8 | 18.5 | 20 | 1800×5400 | 10150 | 5960×2550×1420 |
3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 8 | 22 | 20 | 1800×5400 | 10840 | 6260×2550×1780 |
4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 8 | 30 | 20 | 1800×5400 | 12840 | 6830×2550×2160 |
2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 8 | 30 | 20 | 2100×2600 | 11780 | 6720×2840×1530 |
3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 8 | 30 | 20 | 2100×2600 | 12800 | 7030×2840×1910 |
4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 8 | 37 | 20 | 2100×2600 | 14800 | 7300×2840×2380 |
2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 8 | 37 | 20 | 2400×6000 | 15600 | 7020×3140×1530 |
3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 8 | 37 | 20 | 2400×6000 | 17600 | 7300×3140×1910 |
4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 8 | 45 | 20 | 2400×6000 | 19600 | 7600×3140×2380 |
2YK3072 | 2 | 14.3 | 5-100 | 400 | 200-700 | 8 | 22×2 | 20 | 3000×7200 | 23600 | 7200×4520×4184 |
3YK3072 | 3 | 21.4 | 5-100 | 400 | 230-800 | 8 | 22×2 | 20 | 3000×7200 | 25500 | 7200×4520×4684 |
