SZF linear vibrating screen

Product Introduction
The linear vibrating screen uses the vibrating motor excitation as the vibration source to make the material be thrown up on the screen and move forward in a straight line at the same time, the material enters the feed port of the sieve evenly from the feeder. A plurality of sieve objects of various specifications are generated through a multi-layer sieve screen, and are discharged from their exits respectively. Low energy consumption, high output, simple structure, easy maintenance, completely closed structure, no dust spill, automatic discharge, more suitable for assembly line operation.

Working Principle
The linear vibrating screen is driven by a double vibrating motor. When the two vibrating motors are synchronous and rotating in reverse, the exciting force generated by the eccentric block cancels each other in the direction parallel to the axis of the motor, and is stacked as a force in the direction perpendicular to the motor shaft.Therefore, the motion trajectory of the screen machine is a straight line. The two electrical shafts have a dip angle relative to the screen surface. Under the combined action of the exciting force and the self-gravity of the material, the material is thrown up on the screen surface to move forward in a straight line, so that the material can be screened and classified. It can be used to realize automation in pipeline. The utility model has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance and no dust spills in the closed structure.



Technical Data of the SZF linear vibrating screen

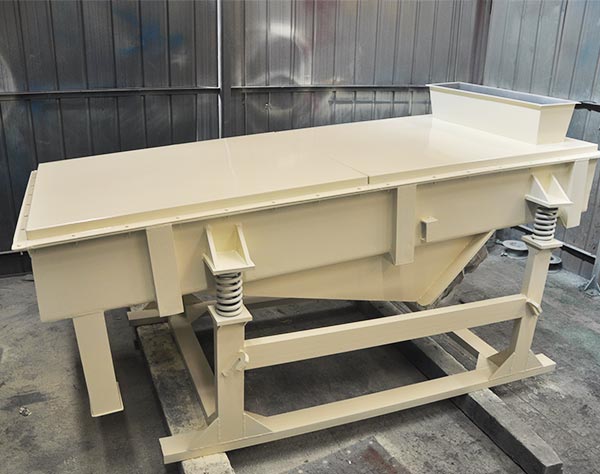

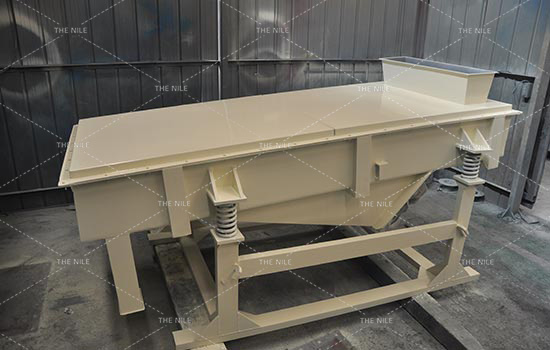

Picture of SZF linear vibrating screen
