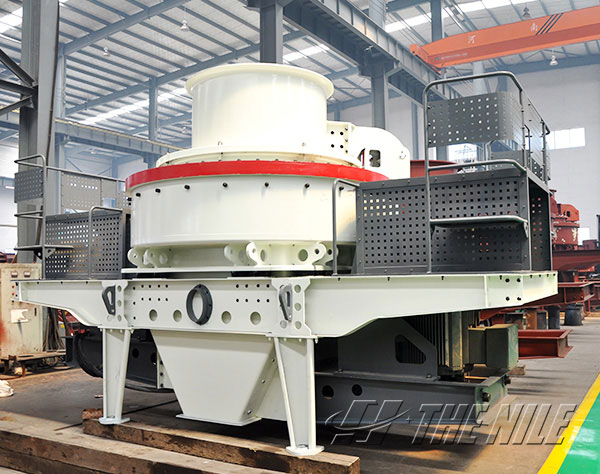

VSI sand making machine
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Product characteristics: (compared with the domestic similar products, the output is higher, the product has good grain shape, the use cost is low). The Nile VSI sand making machine is especially suitable for high-rise buildings, highway (r
- +8613607653853
- 7*24 hours service hotline
The Nile VSI sand making machine is especially suitable for high-rise buildings, highway (railway) construction, municipal engineering, large water conservancy facilities, concrete mixing station and many other fields to provide high-quality aggregate sand. The product discharge shape is cube, reasonable gradation and adjustable fineness module, it is the first choice equipment in the field of artificial sand making and stone shaping.
Under the same production capacity, the power consumption can be reduced by 10-40%. Dual oil pump complementary guarantee oil supply, no oil flow, when the oil pressure id low the machine automatically stop; oil cooling and heating device to ensure the bearing lubrication is always in the best condition. So as to thoroughly solve the bearing heating problems, the spindle bearing to maintain constant temperature, extend the maintenance cycle and service life.
The product grain shape is excellent, the product presents the cube, the grain shape is good, reasonable gradation , the fineness module is adjustable;
Technical Data of the VSI sand making machine
Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | |
Capacity(t/h) | Waterfall and central feeding | 120-180 | 200-260 | 300-380 | 450-520 |
Fully central feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
Max feeding size(mm) | Soft material | 35 | 40 | 45 | 50 |
Hard material | 30 | 35 | 40 | 45 | |
Rotation speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Double motor power(kw) | 110 | 180 | 264 | 400 | |
Dimension (L×W×H)(mm) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | |
Power source | 380V 50HZ | ||||
